Fanvil X3G Manual Provisioning Guide

  Print

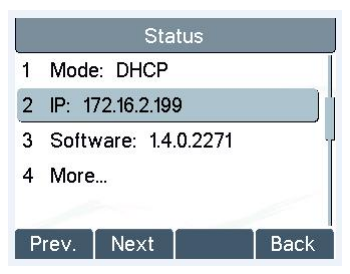

1. Once you have created your SIP Trunk within the Crazytel Portal open a new tab within your Web Browser and enter your phones IP Address. To obtain the IP Address on your phone go "Menu -> Status". The default user name and password is "admin".

6dbde7a6584c2fdeabe6ac52fd22b657a39f6294?t=d3ae769e3edfe5329bbe5826436d2d3b

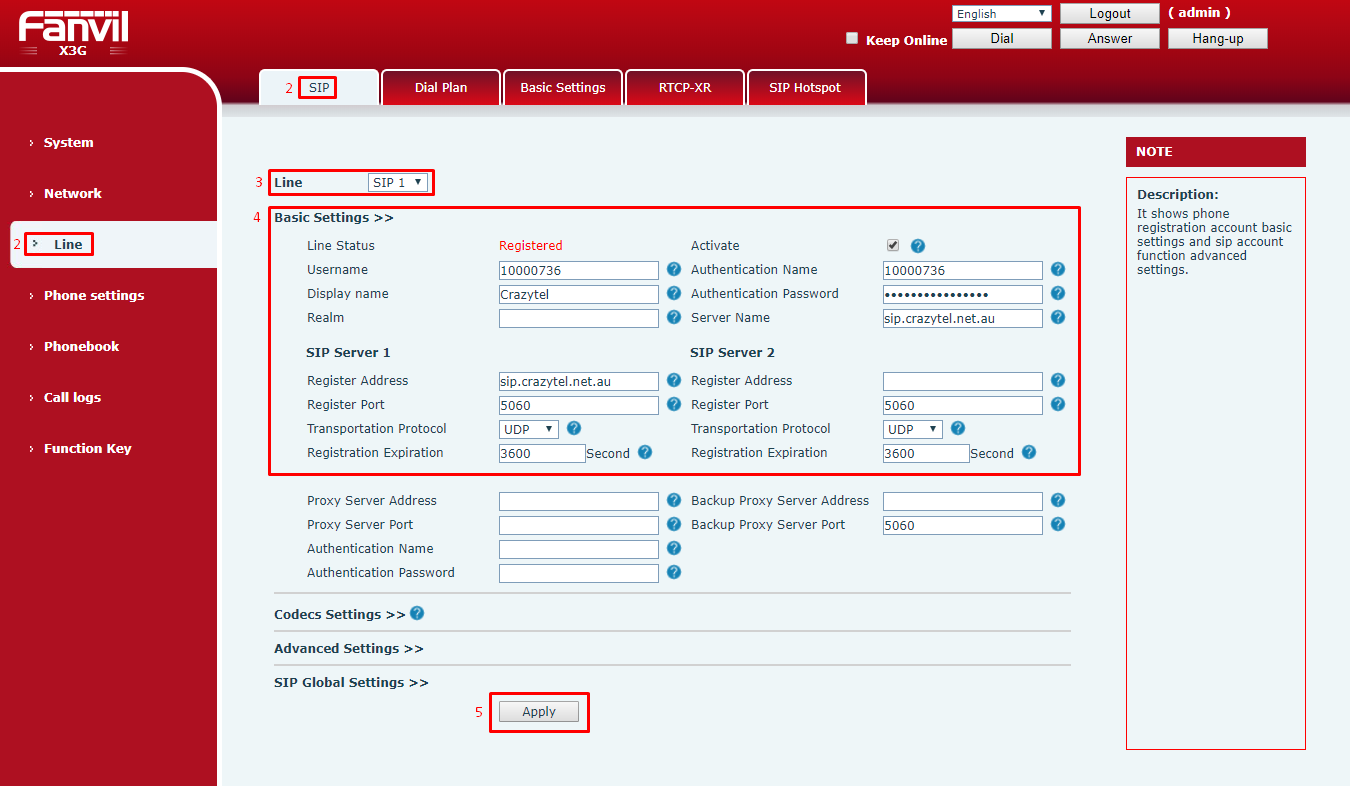

2. To add the line to your handset, in the left hand menu select Line. Then make sure you are on the SIP tab.

3. Select the Line you wish to use. The lines will be name SIP1 or SIP2 before they are assigned.

4. Enter the following details which you will receive when setting up the SIP Truck in the Crazytel Portal

Register Settings
:
- Username: Crazytel SIP Trunk Username.
- Display name: Used to identify the line (can be anything).
- Authentication User: Crazytel SIP Trunk Username.
- Authentication Password: Crazytel SIP Trunk Password.
- Server Name: obtained from Crazytel.
- Activate: This box must be ticked.

SIP Server 1
- Server Address: Same as Server Name
- Server Port: 5060
- Transport Protocol: UDP
- Registration Expiration: 3600

5. Click Apply to save the settings.

13f1ccb2daa1286d06588734852c97dee3316618?t=be04817c815ed4db6d9ce375ce80ac28

You will now be able to make and receive calls through your Crazytel service.
