Yealink T4 Series Manual Provisioning Guide

  Print

1. Once you have created your SIP Trunk within the Crazytel Portal open a new tab within your Web Browser and enter your phones IP Address. For this guide I will be using a Yealink T48S handset. To obtain the IP Address on your phone go "Menu -> Status" or press the OK button. The default user name and password is "admin". This guide can also be used for wireless phones, such as the Yealink W60B. To retrieve the IP Address from the phone go "Status -> Base".

2253339c4a40cacd98bed7c2604bdef8c2bcc2e4?t=a6f727258acff772845dbea44ec4f504

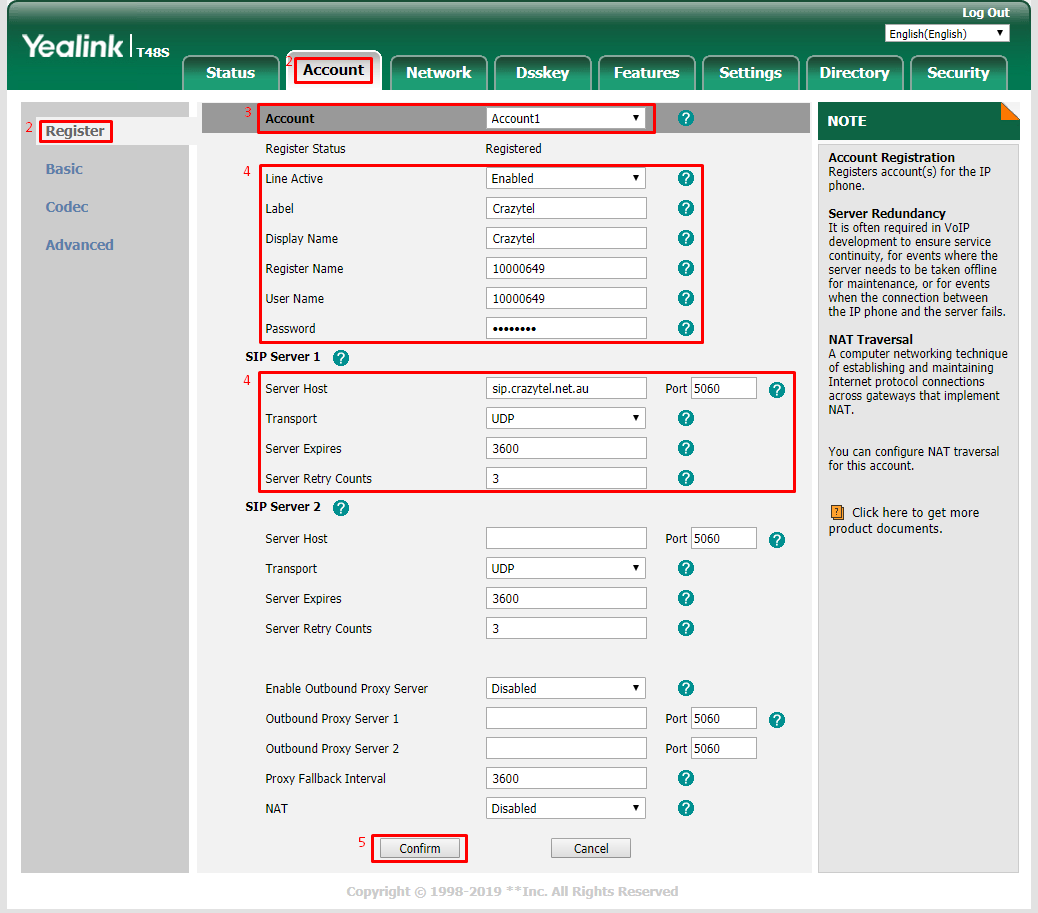

2. To add the line to your handset, select Account from the Tabs along the top. Then select Register from the left hand menu.

3. Select the Account (Line) you wish to use.

4. Enter the following details which you will receive when setting up the SIP Truck in the Crazytel Portal

Register Settings
:
- Line Active: Enabled
- Label: This will be what is displayed on your phone.
- Display name: Used to identify the line (can be anything).
- Register Name: Crazytel SIP Trunk Username.
- User Name: Crazytel SIP Trunk Username.
- Password: Crazytel SIP Trunk Password.

SIP Server 1
- Server Host: Crazytel SIP Trunk Domain.
- Port: 5060.
- Transport: UDP.
- Server Expires: 180.

5. Click Confirm to save the settings.

0a0237a19ff965c6fa65cb9abafe64dcc25e711f?t=6bf711a294d3e80da665fe07e78cc956

You will now be able to make and receive calls through your Crazytel service.
